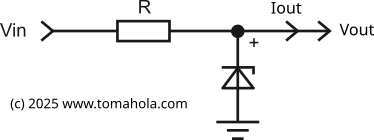

Zener Diode Voltage Regulator

Vout/Vzener= volt
Vin max= volt
Vin min= volt
Iout max= amp
Iout min= amp

R= ohm
Presistor watts
Pzener watts

Note! After computing resistance and power ratings of resistor and zener, you can edit the resistance and power ratings to available standard component values. The powers rating will affect the available maximum input voltage, which you can now recalculate with the button. The resistance value will affect the available minimum input voltage, which you can now recalculate with the button.
